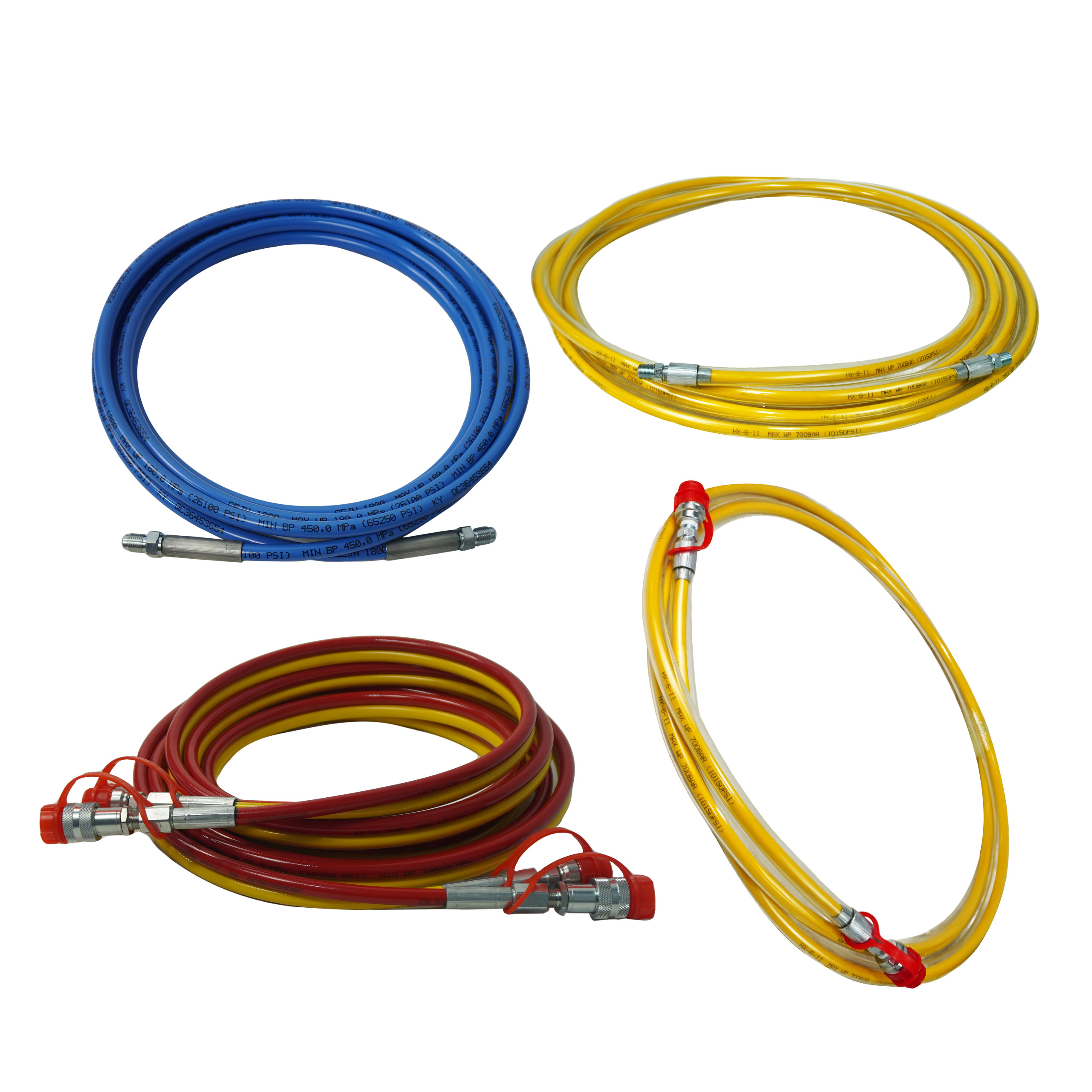

Hydraulic Hoses
ULTPRE delivers high-performance hydraulic hose solutions designed for demanding industrial applications. Our robust hoses withstand extreme pressures while ensuring safety and durability
Description
-

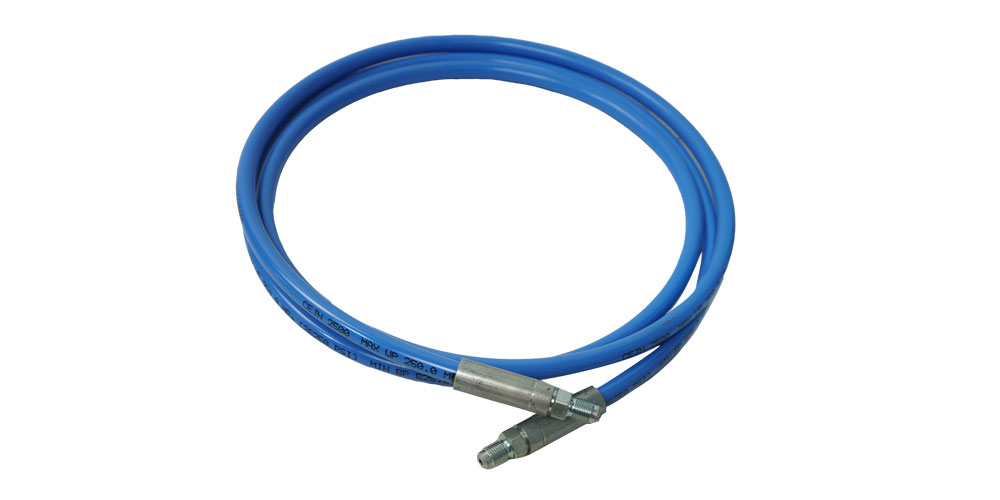

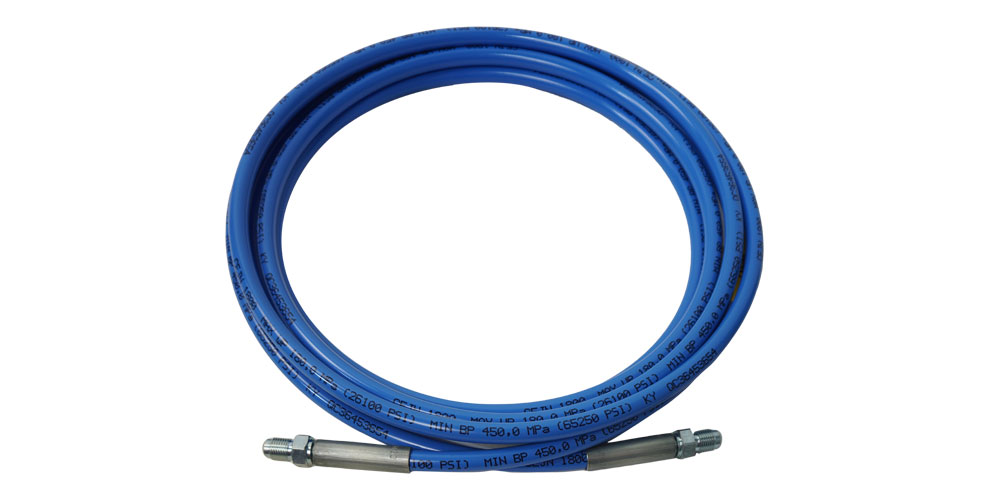

70MPa Hydraulic Hoses: Ideal for hydraulic cylinders and general heavy-duty systems requiring reliable high-pressure fluid transfer.
-

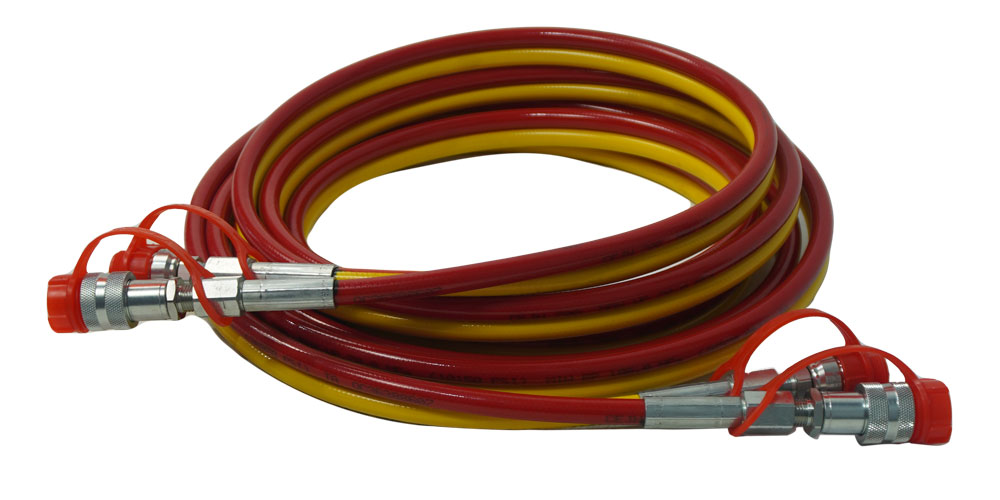

70MPa Twin Hose Assemblies: Specifically designed for hydraulic torque wrenches (hydraulic nuts), providing synchronized power delivery.
-
Ultra-High-Pressure Solutions: Specialized 180MPa and 250MPa hoses built for the most intense applications with hydraulic tools.
-
Complete Customization: All hoses are available in custom lengths to perfectly fit your equipment layout.
-
Enhanced Protection: Optional PC (polyurethane) anti-abrasion sleeves available to significantly extend hose life in harsh, abrasive environments.
Specification
| Model | Pressure Range(Bar) | Rated Working Pressure | ID | Thread | Description |
|---|---|---|---|---|---|
| HSP700-6-PC |  | 70MPa | 6.4mm | NPT 3/8 | 6 Meter Hose Both End NPT 3/8 Thread |
| HSP700-3-MM-PC |  | 70MPa | 6.4mm | NPT 3/8 | 3 Meter Hose Both End Male Couplers |
| HDP700-6-FM |  | 70MPa | 6.4mm | NPT 1/4 | 6 Meter Twin Hose With Quick Connectors |
| HDP180-6 |  | 180MPa | 4.8 | G 1/4 | 6 Meter 180 MPa Hydraulic Hose Both End G 1/4 Thread |
| HDP250-3 |  | 250MPa | 4.8 | G 1/4 | 3 Meter 250 MPa Hydraulic Hose Both End G 1/4 Thread |
