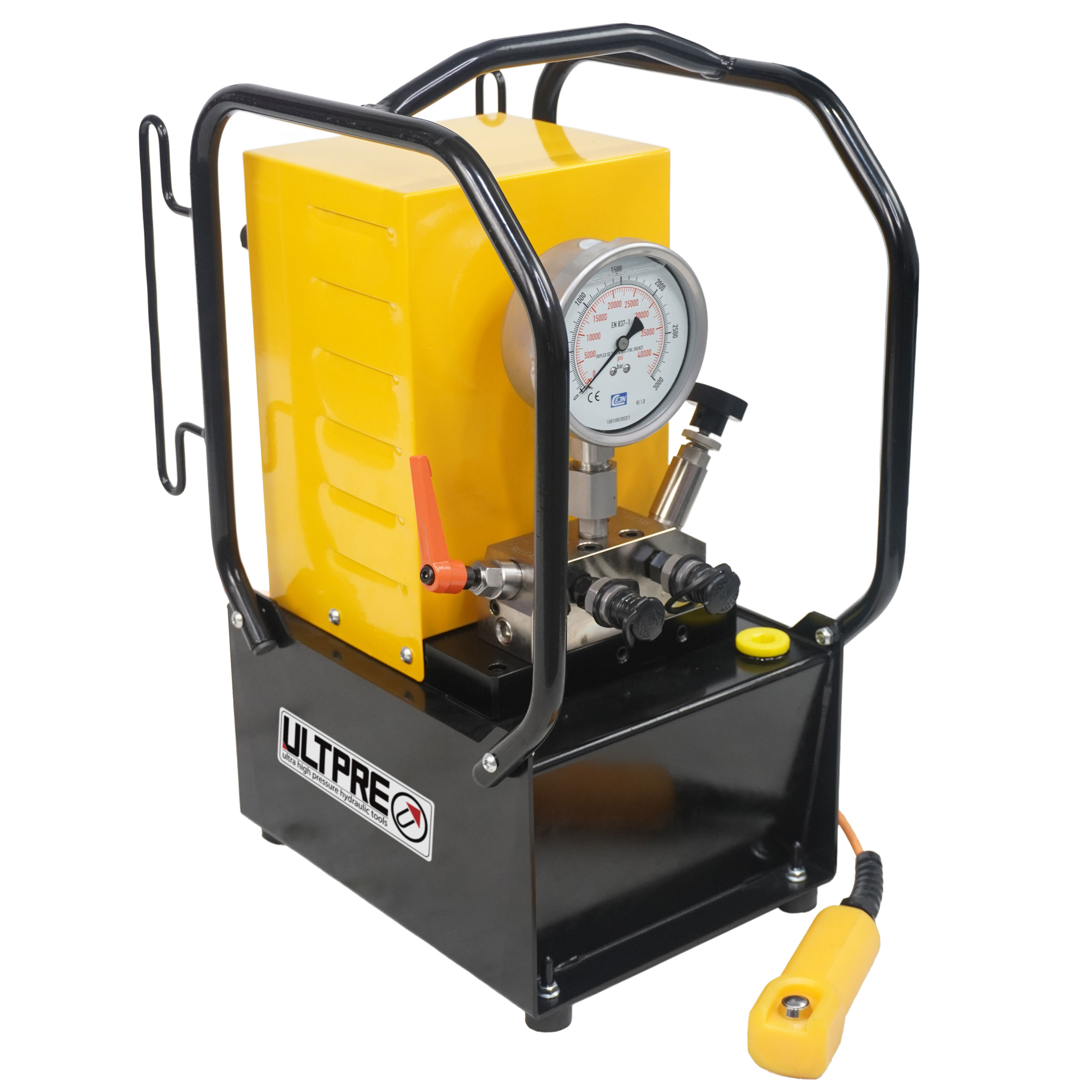

EPL1500,150MPa Portable Ultra-High Pressure Electric Bolt Stretcher Pump
The ULTPRE EPL Series redefines portability and precision in high-pressure bolt tensioning, offering unmatched performance in a lightweight, compact design. Built for professionals who demand reliability on the go, this pump series eliminates complex setups while delivering industrial-grade power
Description
Model: EPL1500 | Series: EPL | Product Line: Industrial Tools
Engineered for efficiency in confined spaces and harsh environments, the EPL Series excels in energy, wind power, and infrastructure projects where portability and precision are non-negotiable.
-
Brushless Motor: Maintenance-free operation with ultra-low noise and extended lifespan.
-
Dual-Stage Plunger Pump (No Intensifier): Simplified structure for reduced maintenance and enhanced durability.
-
Adjustable Relief Valve: Ensures precise pressure control for consistent, accurate tensioning.
-
Manual Relief Valve: Safely release pressure instantly in any scenario.
-
Zero-Leakage Design: Maintains pressure post-shutdown for secure, uninterrupted workflows.
-
Aluminum Alloy Welded Tank: Lightweight yet robust construction for easy transport.
-
CEJN 116/125 Quick-Connect Couplers: Enables fast, secure hydraulic line connections.
-
Low-Voltage Remote Control Handle: Enhances operator safety with ergonomic, low-voltage wired control.
Specifications
| Maximum Operating Pressure (bar) | 1500 |
| Motor Power(KW) | 1 |
| Usable Oil (L) | 5 |
| First Stage Oil Flow Rate(L/min) | 1.5 |
| Second Stage Oil Flow Rate(L/min) | 0.25 |
| Oil Outlet Thread | G 1/4 |
| Coupler | CEJN 116 Series |
| Weight Without Oil(Kg) | 18 |
Diagram
Dimensions
Hydraulic Diagram

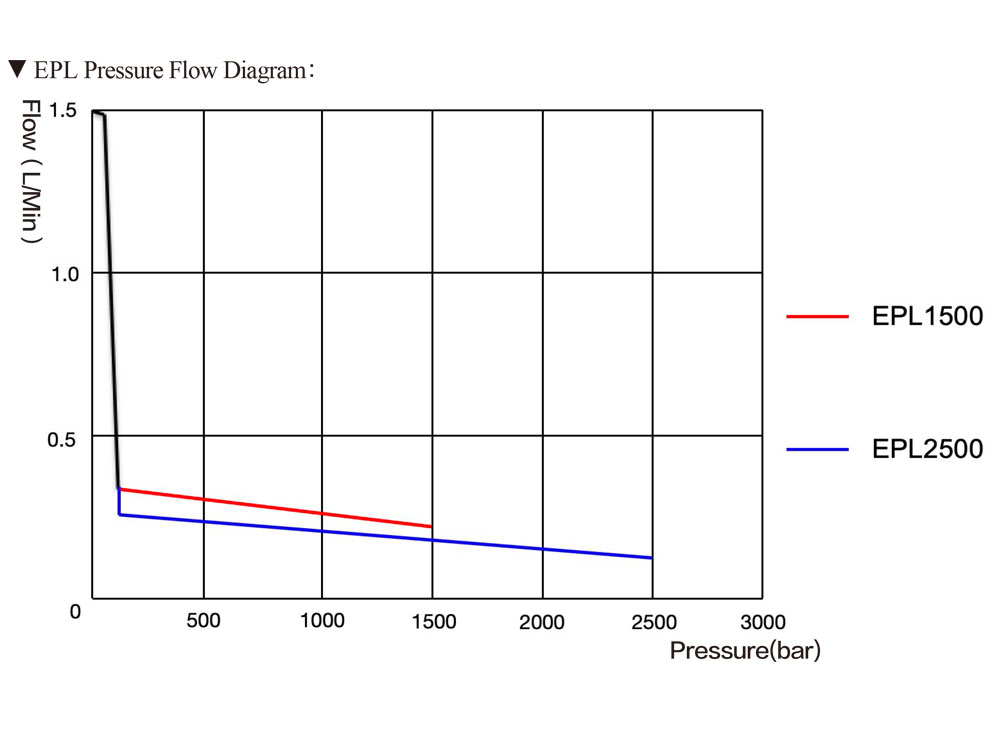

Pressure/Flow Rate Curve
Series Comparison
| Model Number | Max Working Pressure | Motor Power | Low Pressure Flow Rate | High Pressure Flow Rate | Usable Oil | Outlets Thread | Quick Connector | Weight Without Oil |
|---|---|---|---|---|---|---|---|---|
| EPL1500 | 1500 bar | 1KW | 1.5L/Min | 0.25L/Min | 5L | G 1/4 | CEJN 116 Series | 18kg |
| EPL2500 | 2500 bar | 1KW | 1.5L/Min | 0.15L/Min | 5L | G 1/4 | CEJN 125 Series | 19kg |
Product Illustration
- Protected Framework
- Cover
- Pressure Adjusting Valve
- Oil Level Gauge
- Oil Release Port
- Quick Connector
- Relief Valve
- Pressure Gauge
- Wire Winder
Downloads
| – | File Name | File Type |
|---|---|---|
 | EPL Portable Electric Ultra-high Pressure Pumps Brochure | English |
| EPL便携电动超高压泵图册 | 中文 |
| EPL Electric Ultra-High Pressure Pumps Instructions | English |
| EPL电动超高压泵使用说明书 | 中文 |
