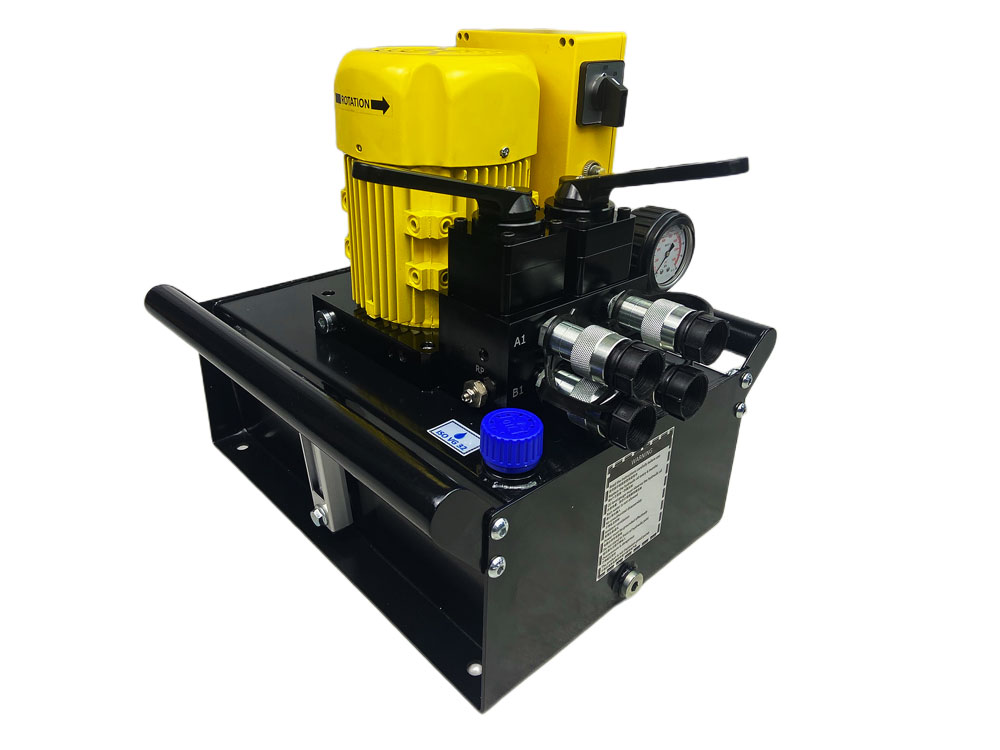

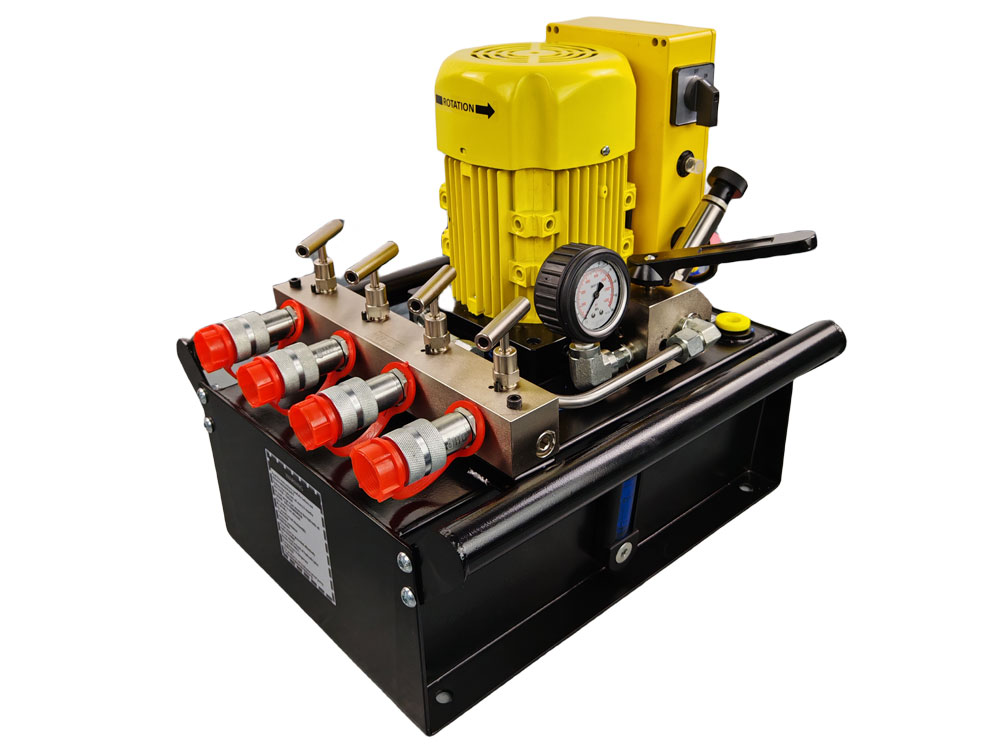

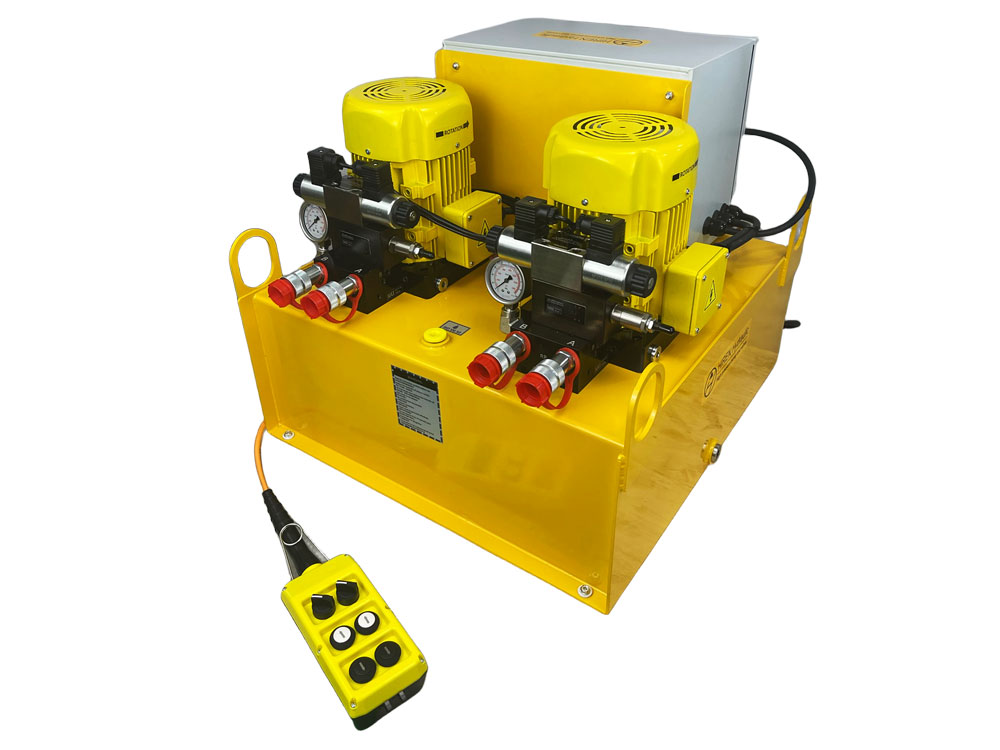

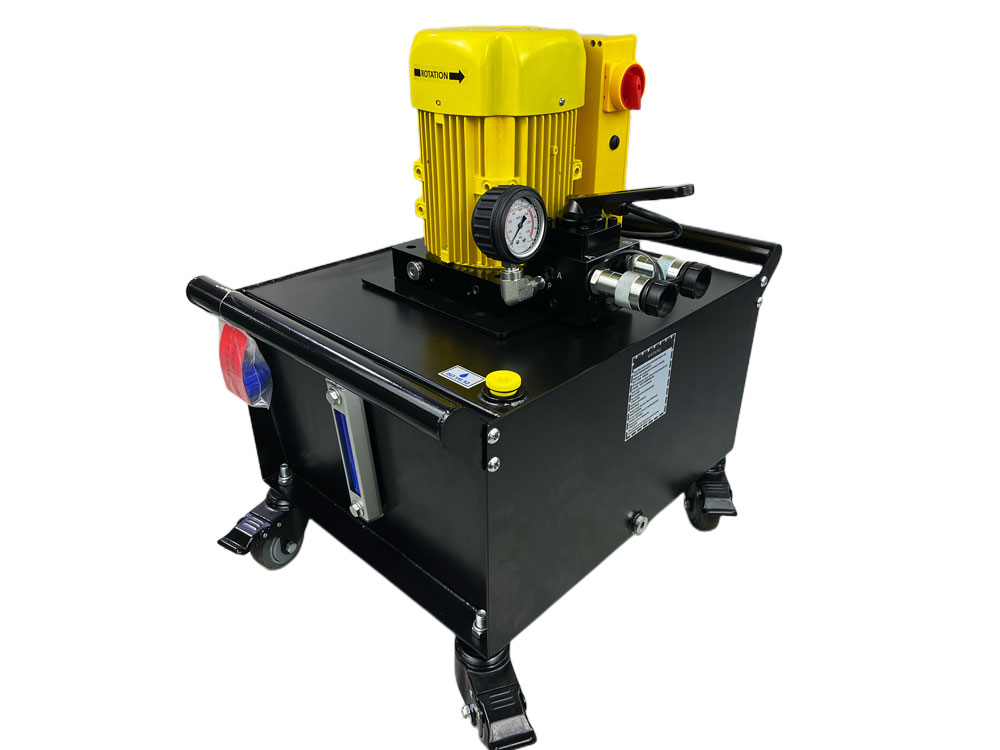

HE Series,Heavy Duty Electric Hydraulic Pump

The ULTPRE HE Series electro-hydraulic pump combines cutting-edge technology with robust performance, engineered to deliver unmatched efficiency and reliability for diverse industrial applications.

PRICE ON REQUEST

Features

Description

Series: HE | Product Line: Industrial Tools

Ideal for heavy-duty tasks requiring precision and power, the HE Series adapts seamlessly to your operational demands. Choose ULTPRE for innovation that works harder—and smarter.

Key Features:

• IEC Brushless Motor: Maintenance-free operation ensures long service life.

• Compact & Lightweight: Integrated motor-pump unit design for easy handling.

• Ultra-Quiet Operation: Noise levels as low as 75dB for improved workplace comfort.

• Enhanced Safety: Built-in safety valve and externally adjustable relief valve.

• Standard Configurations: Pressure gauge, quick-connectors, visual oil level gauge, air-filtered oil filler, drain plug, on/off switch, and power cable.

• Dual-Pump Design: Gear pump + radial piston pump two-stage structure maximizes efficiency.

• Flexible Customization:Tailor your system with standard options including,motors with different powers from 1.1KW to 7.5KW, hydraulic oil tanks of different sizes from 10L to 200L, and hydraulic control valves with different functions

• Optional configurations: wire control handle, lockable casters, protective frame, air-cooled radiator, single-circuit or dual-circuit multi-points valve group, none-standard working voltages, external rotary precision pressure adjusting valve, multi-point configuration GA45GC pressure gauge assembly, etc.

Series Comparison

Specifications

Model	Max Working Pressure(Mpa)	Motor Power(KW)	Motor Phase	Low Pressure Flow Rate(L/min)	High Pressure Flow Rate(L/min)	Optional Voltage
HE4	70	1.1	1	7	0.7	230/115VAC
HE5	70	1.5	1	9	1	230/115VAC
HE6	70	1.5	3	9	1	380/230VAC
HE7	70	2.2	3	12	1.5	380/230VAC
HE83	70	3	3	12	1.8	380/230/440VAC
HE84	70	4	3	12	2.3	380/230/440VAC
HE95	70	5.5	3	20	3	380/230/440VAC
HE97	70	7.5	3	20	4.2	380/230/440VAC

Series Comparison

He Series Model & Configuration Selection Table:

Configurations	Power Selection	Oil Tank Capacity Options(L)	Control Valve Group Options	Lockable Wheels	Protection Frame	Air-cooled Radiator	Motor Control	Working Points	Voltage	Extra Pressure Gauge	Precision Pressure Adjusting Valve
Options 1	HE4	010	MV32	Blank(Without Wheels)	Blank(Without Protection Frame)	Blank(Without Cooling)	Blank(Motor Control Button On The Pump)	Blank(Without Multiple Points Manifold)	Blank(GB Standard)	Blank(Without Extra Pressure Gauge)	Blank(Without Extra Precision Pressure Adjusting Valve)

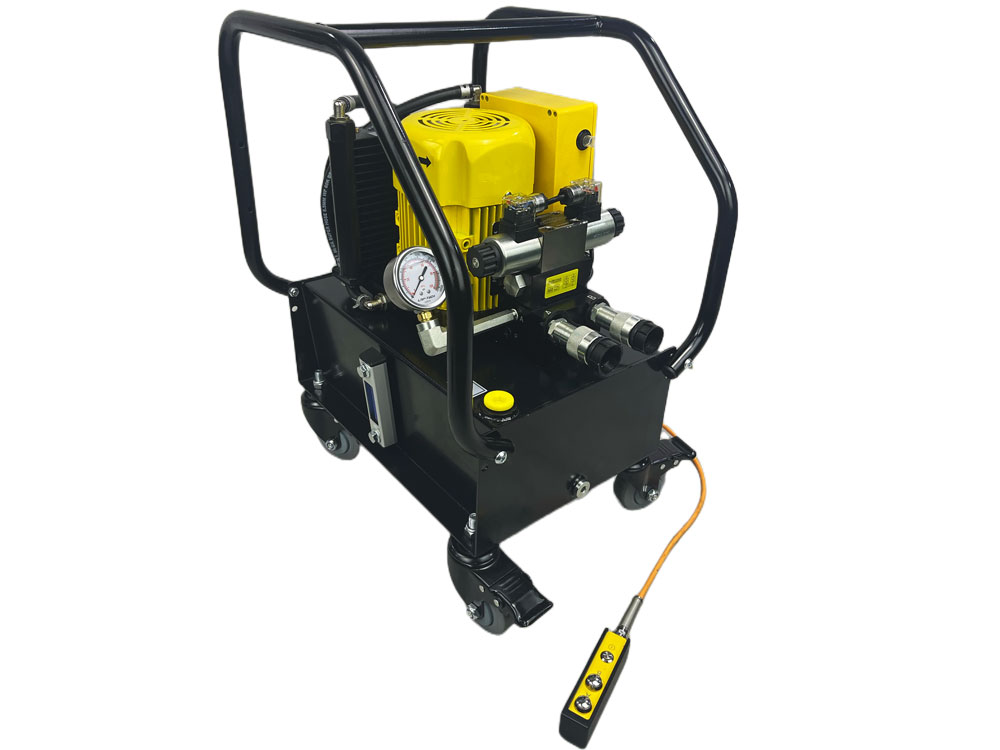

Options 2	HE5	020	MV33	W(With Wheels)	L(With Full Protection Frame)	F(With Cooling)	R(Motor Control Button On Wire Handle)	2SV(With 2 Points Single Acting Needle Valve Type Manifold)	▪230/60 (single phase,230V,60HZ)	2GA( 2 GA45GC Pressure Gauge Assembly Installed On The 2 Points Manifold)	PRV(With Extra Precision Pressure Adjusting Valve)

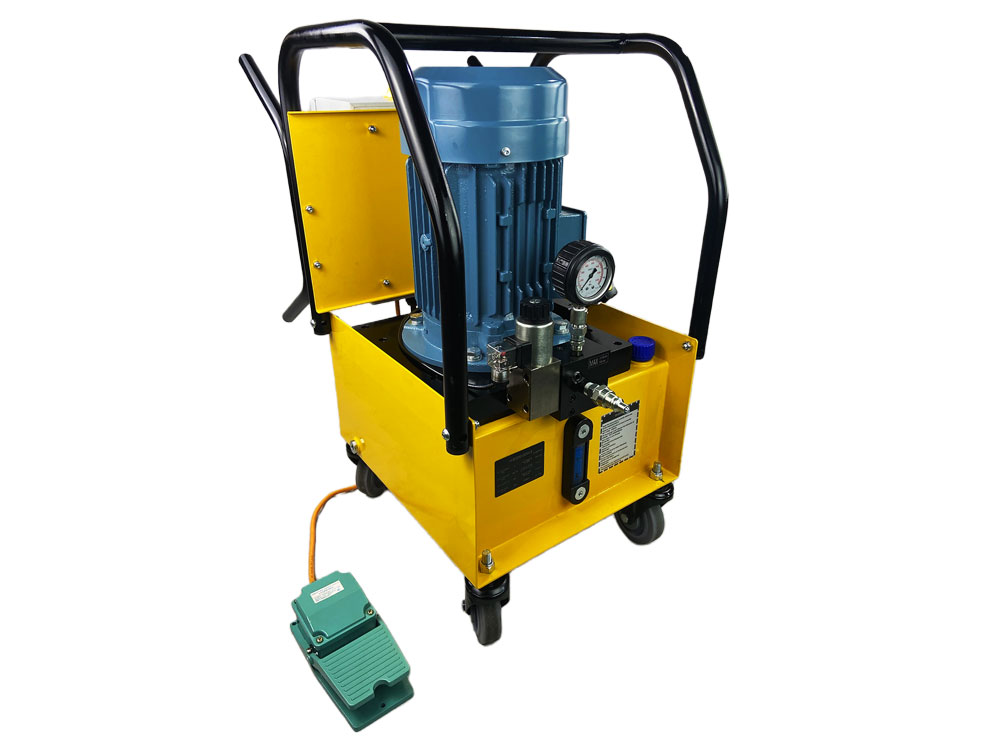

Options 3	HE6	040	MV43				P(Pedal Control)	2DV(With 2 Points Double Acting Needle Valve Type Manifold)	▪440/60 (three-phase,440V,60HZ)	4GA( 4 GA45GC Pressure Gauge Assembly Installed On The 2 Points Manifold)
Options 4	HE7	080	MVL43					4SV(With 4 Points Single Acting Needle Valve Type Manifold)
Options 5	HE83	0100	EV32					4DV(With 4 Points Double Acting Needle Valve Type Manifold)
Options 6	HE84	0200	EV32-A
Options 7	HE95		HV22
Options 8	HE97		EV43
Options 9			EVL43
Options 10			EVB43

◆ The oil tank capacity is the maximum available oil volume, in L

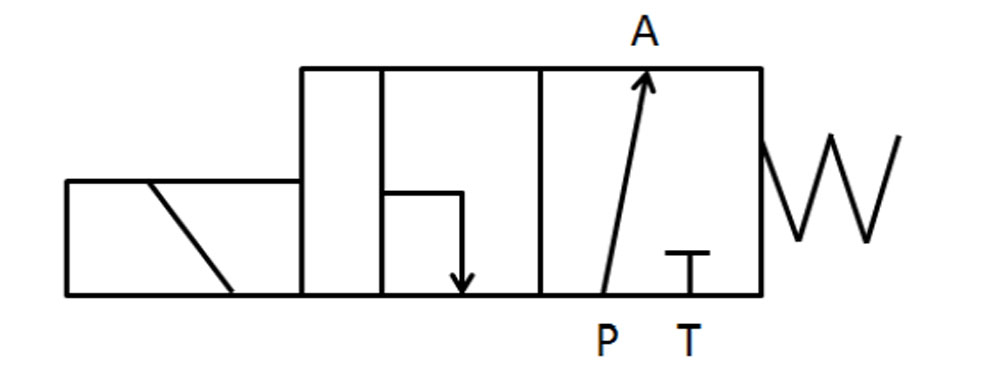

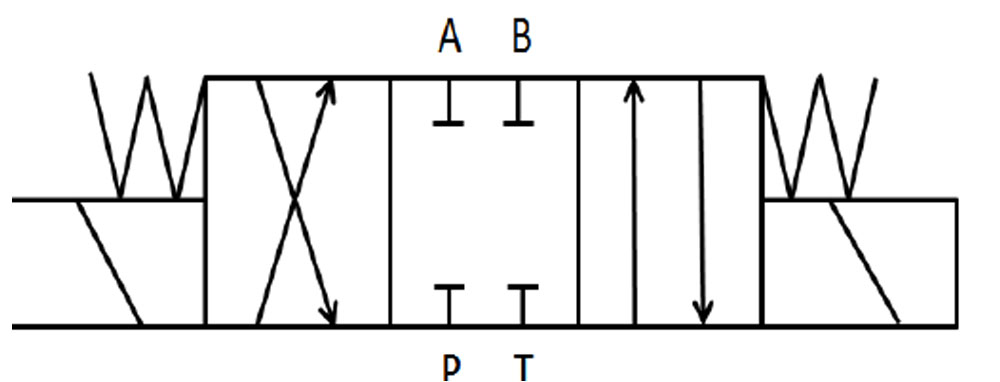

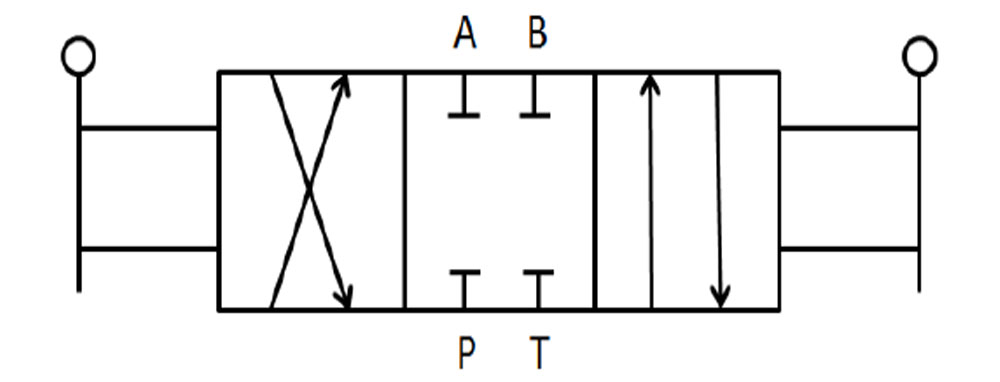

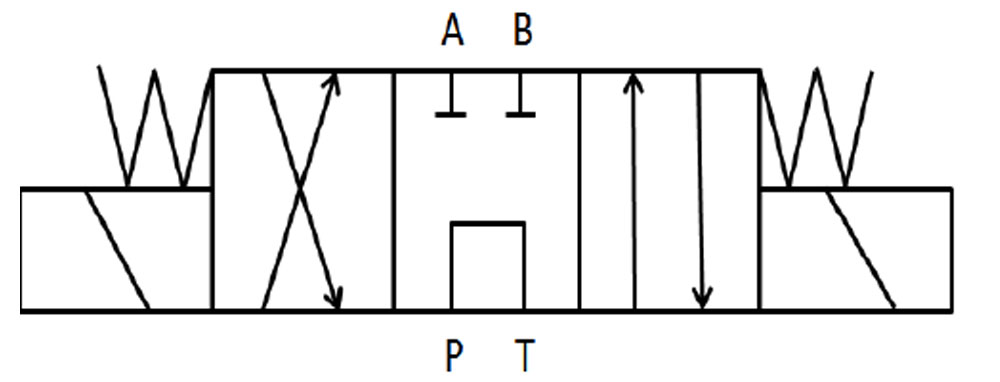

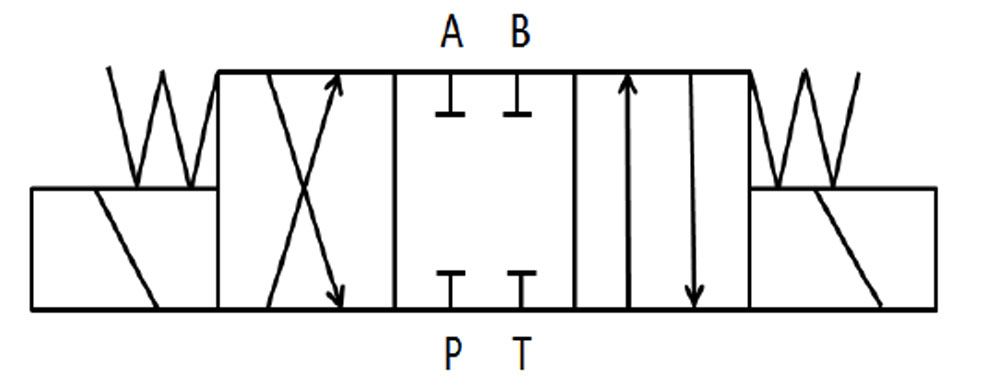

◆ For valve group functions, please refer to the valve group function table
◆ A variety of other non-standard customized configurations are available, such as multiple solenoid valve groups, multiple manual reversing valve groups, foot pedal, customized oil tank capacity & shapes, pressure sensors, pressure switches, pressure gauges, customized electrical controls, different appearance & colors, etc.
◆ The above naming method does not represent the entire supply range, please consult for more options
